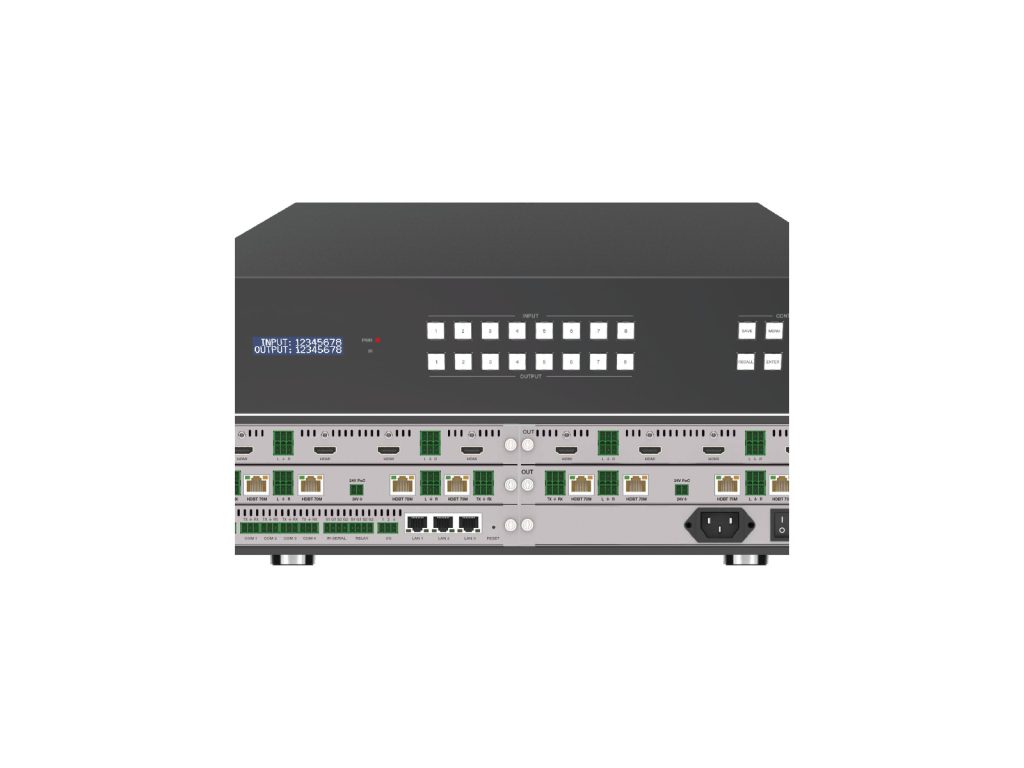

Fixed matrices assume everything in the building speaks HDMI. Real installations rarely do. This chassis is card-based: each of the eight input and eight output slots takes whatever that particular signal path needs — HDMI, DVI, HDBaseT, fiber, 12G/3G/HD/SD-SDI, VGA, YPbPr or CVBS — so a broadcast camera on SDI, a legacy signage player on VGA and a fiber run to the far side of a campus all land in the same frame.

Switching is seamless across the whole matrix, with no black frame between sources, and the outputs can be grouped into a video wall with character overlay for labelling or lower-thirds. Built-in equalization, scaling, re-timing and drive on every card mean each path is regenerated rather than merely patched.

4K series cards run 4K60 at RGB/YCbCr 4:4:4; 2K cards handle up to 1920×1200 at 60Hz. Audio de-embedding, EDID management, and control via front panel, IR, RS-232, TCP/IP and web GUI are standard. The same platform scales to 16×16, 36×36 and 80×80 frames if the project outgrows eight.

Every one of these is specified rather than ordered — the card mix depends entirely on what is at each end. Send us the signal list and we will lay out the frame and quote it.
