Transparent LED Mesh Panels. Each module weighs only 6 kg/m² with a slim 1.8 mm profile. Standard modules support flexible size combinations for seamless splicing and are the preferred choice for direct glass mounting — suitable for both single- and double-sided display applications.
Product Features
- Ultra-high transparency — no splicing structure; a full, see-through screen.

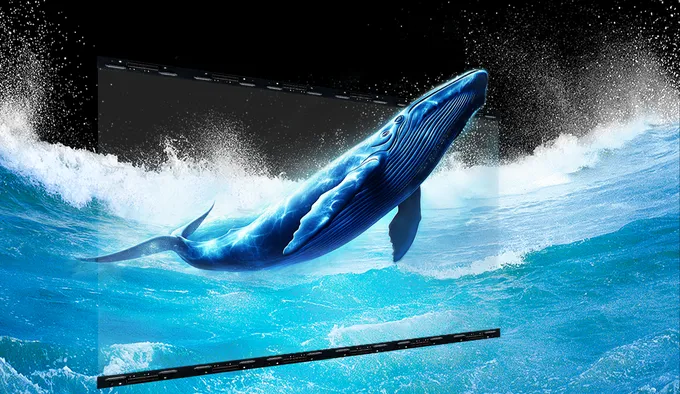

- Spatial floating image — 3D holographic content appears to float in space.
- HD display quality — equal horizontal/vertical pixel spacing, light & driver integrated, 16-bit grayscale.
- High brightness & contrast — up to 5,000 cd/m² and a 9,000:1 contrast ratio.
- Pliable & flexible — bendable modules for curved and custom-shaped glass.
- Ultra-light — only 6 kg/m².
- Ultra-thin — modules under 2 mm (1.8 mm) for seamless curved-surface mounting.
- Simple install & maintenance — modular collage on the front or back of glass, without altering the building.
Product Advantages
- High transparency — maintains natural light and sightlines with up to 95% perceived transparency; does not alter the building’s interior or exterior appearance.
- Single-LED control — each LED is independently driven by a dedicated IC.
- Flexible — standard modules bend for curved glass or custom-shaped screens.
- Lightweight & ultra-thin — 6 kg/m², 1.8 mm thick.
- Minimal installation & maintenance — mount directly on transparent glass without affecting indoor natural light.
Model Comparison
| Spec |
M2 · P2.5 |
M3 · P3.91 |
M6 · P6.25 |
| LED Specification |
1515 |
2121 |
2121 |
| Pixel Pitch |
2.5 mm |
3.91 mm |
6.25 mm |
| Pixel Density |
160,000 dot/m² |
65,536 dot/m² |
25,600 dot/m² |
| Transparency |
85% |
92% |
95% |
| Brightness |
≥1,000 cd/m² (BL) |
≥3,000 (BL) / up to ≥5,000 (WL) |
≥3,300–4,500 cd/m² (WL) |
| Max Power |
608 W/m² |
up to 684 W/m² |
552 W/m² |
| Avg Power |
244 W/m² |
up to 274 W/m² |
221 W/m² |
| Module Sizes (W×H) |
125×1000 / 125×1175 / 125×1475 mm |
250×1000 / 250×1172 / 250×1469 / 250×1969 mm |
250×1000 / 250×1175 / 250×1475 / 250×1975 mm |
| Installation |
PCB side glued |
LED/PCB side glued · hanging |
LED/PCB side glued · hanging |
Parameters are for reference and subject to update without notice. Available by quote — contact us for sizes, single/double-sided configuration, and lead times.
