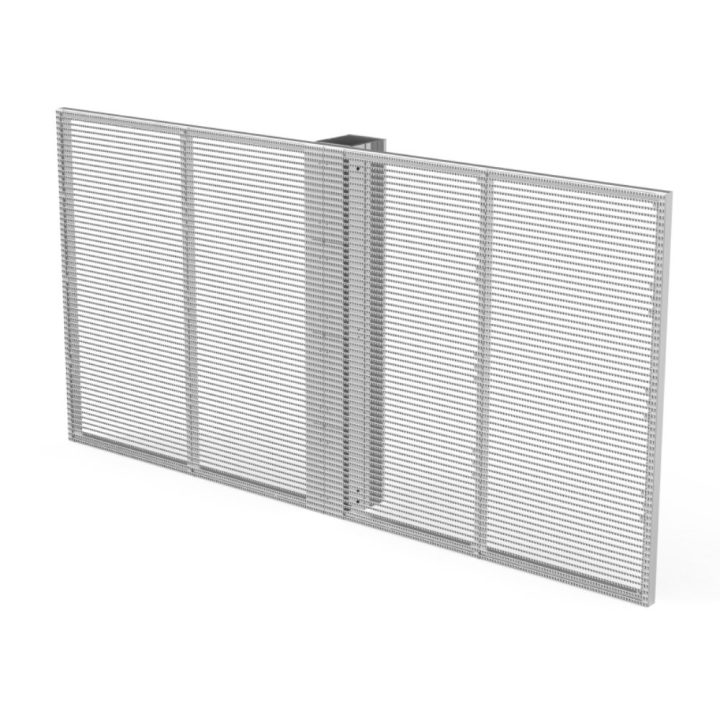

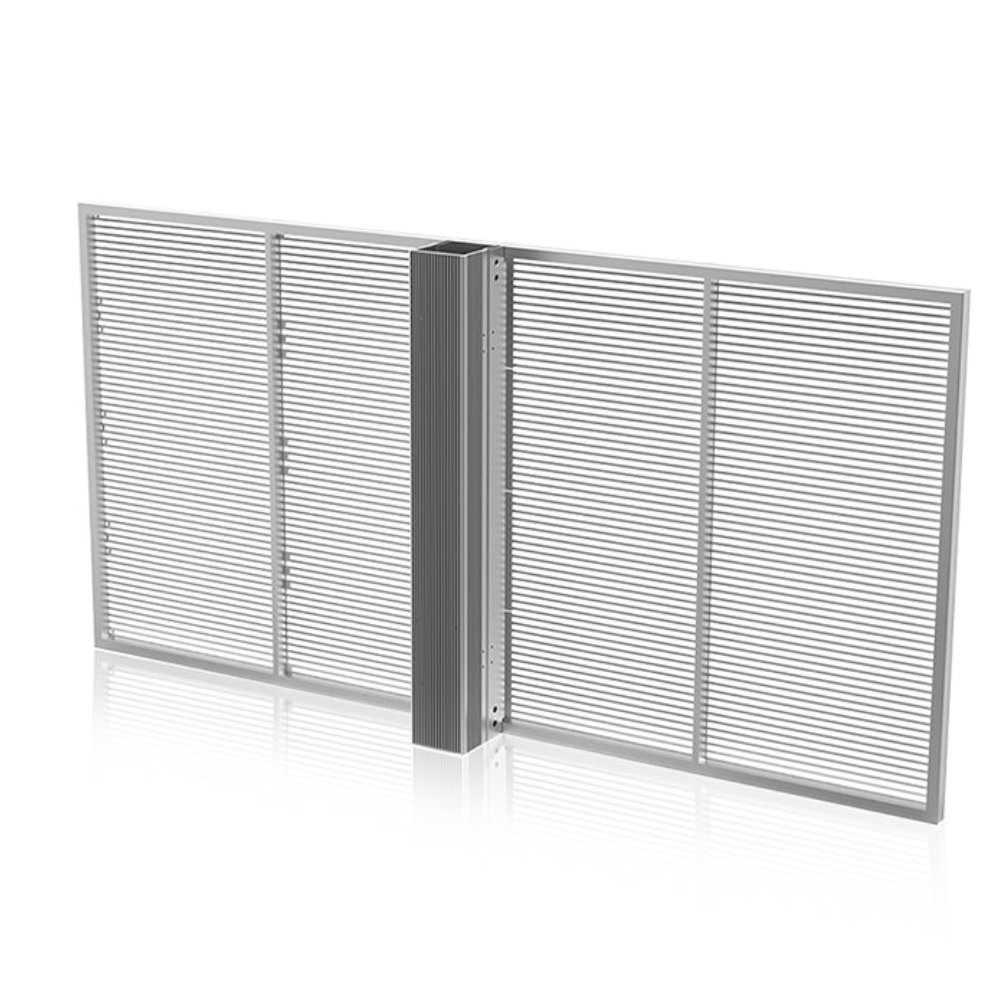

The Transparent LED Bar Screen is a full-color, see-through indoor LED display built from slim profile-aluminium bar cabinets. At 68–70% transparency it keeps sightlines and daylight open behind the screen, while 5,000 nits of brightness keep content vivid in bright retail and lobby environments. Each 1000 × 500 mm cabinet weighs little and rigs from a hanging bar, so panels tile into long horizontal strips across glass facades, storefront windows, and stage backdrops.
Specifications
Display
| Pixel Pitch |
3.9 / 7.8 mm |
| Pixel Configuration |
1R1G1B · SMD1921 |
| Pixel Density |
32,768 px / m² |
| Max Brightness |
5,000 nits |
| Transparency |
68% – 70% |
| Viewing Angle |
140° horizontal / 140° vertical |
| Refresh Rate |
3,840 Hz |
Module & Cabinet
| Module Resolution |
128 × 16 px |
| Module Size |
500 × 125 mm (19.7 × 4.9 in) |
| Cabinet Resolution |
256 (W) × 64 (H) px |
| Cabinet Size |
1000 × 500 mm (39.4 × 19.7 in) |
| Cabinet Area |
0.25 m² |
| Cabinet Material |
Profile aluminium |
| Service Access |
Back (rear) service |
Power
| Power Consumption (max) |
< 600 W / m² |
| Power Consumption (average) |
< 200 W / m² |
| Input Voltage |
AC 110 / 220 V ±10% |
Environment & Reliability
| Operating Temperature |
-20°C to 50°C |
| Operating Humidity |
10% – 90% RH |
| Storage Temperature |
0°C to 40°C |
| Storage Humidity |
40% – 60% RH |
| Lifespan (typical) |
≥ 100,000 hours |
| MTBF |
≥ 10,000 hours |
Connectivity
| Signal Compatibility |
CVBS, YC, YUV, RGB, DVI, SDI, HD-SDI, HDMI |
Sold by quote — pricing varies with screen size, array layout, processor, and shipping. Request a quote for your project dimensions.
