Outdoor 10FT x 7FT LED Video Wall P2.6 – Novastar, Kinglight, Hanging Bars

Key Features

Ultra-Fine Pixel Pitch (2.6mm)
Provides crisp, detailed visuals with high pixel density, ensuring smooth video playback and sharp text readability—even from close viewing distances.

Brilliant Brightness
With up to 5000 nits of brightness, the screen maintains vivid image quality outdoors, even under direct sunlight.

High Refresh Rate (7680Hz)
Ensures flicker-free performance for live broadcasts, cameras, and high-motion content.

Durable & Weather-Resistant
Built with an IP65-rated aluminum die-cast cabinet, this LED wall resists dust, rain, and harsh outdoor conditions.

Flexible Viewing
Wide 160° horizontal / 140° vertical viewing angle, making visuals clear from almost any perspective.

Easy Installation & Transport
Lightweight cabinet design (approx. 12.8kg per panel) with a fast-locking system allows for quick setup. Includes professional-grade flight cases for secure transport and storage.

Technical Specifications

• Pixel Pitch: 2.604mm

• Resolution: 655,360 dots/m²

• Module Size: 250 × 250mm

• Cabinet Size: 500 × 1000mm

• Cabinet Weight: ~12.8kg

• Brightness: ≥5000 nits

• Refresh Rate: ≥7680Hz

• Gray Scale: 14–16 bit

• Viewing Distance: Best at 3–50m

• Viewing Angle: 160° (H) / 140° (V)

• Lifetime: 100,000 hours

• Power Consumption: Avg ≤400W/m² | Max ≤800W/m²

• Signal Input: PAL/NTSC, DVI

• Control System: Novastar CMS 260

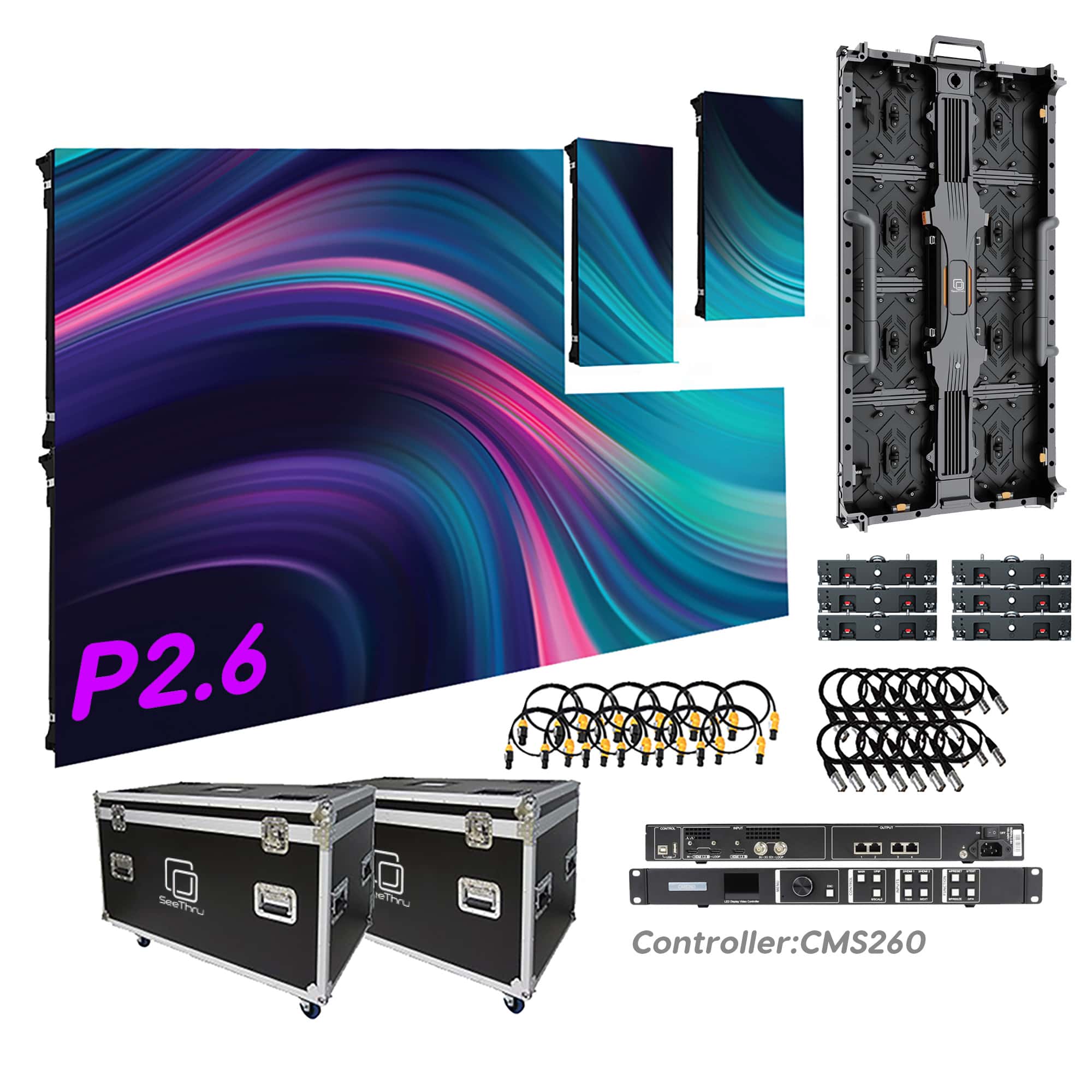

What’s Included

• Complete 10ft x 7ft P2.6 Outdoor LED Video Wall

• Novastar Controller: CMS260, supports scaling and picture in picture

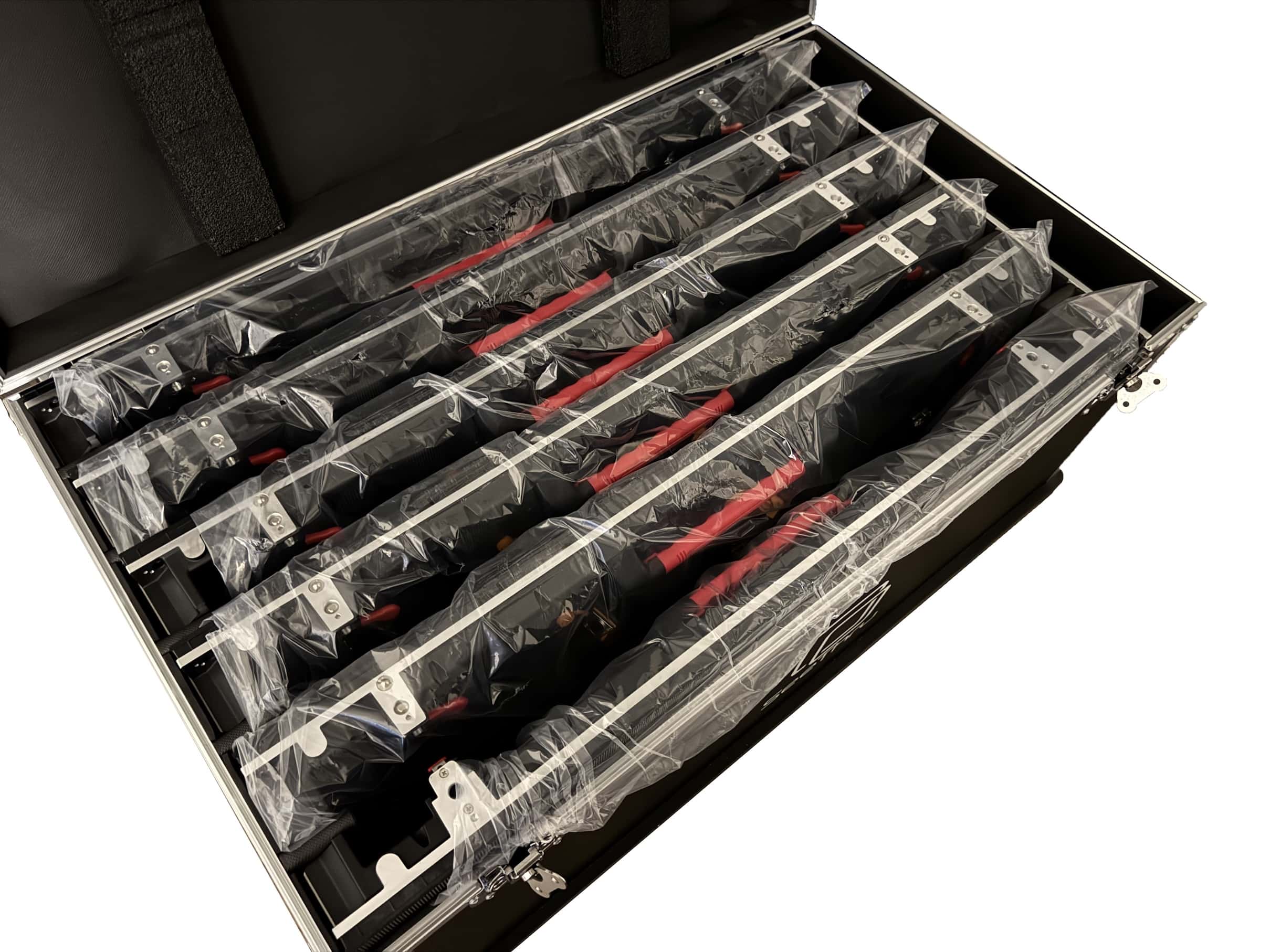

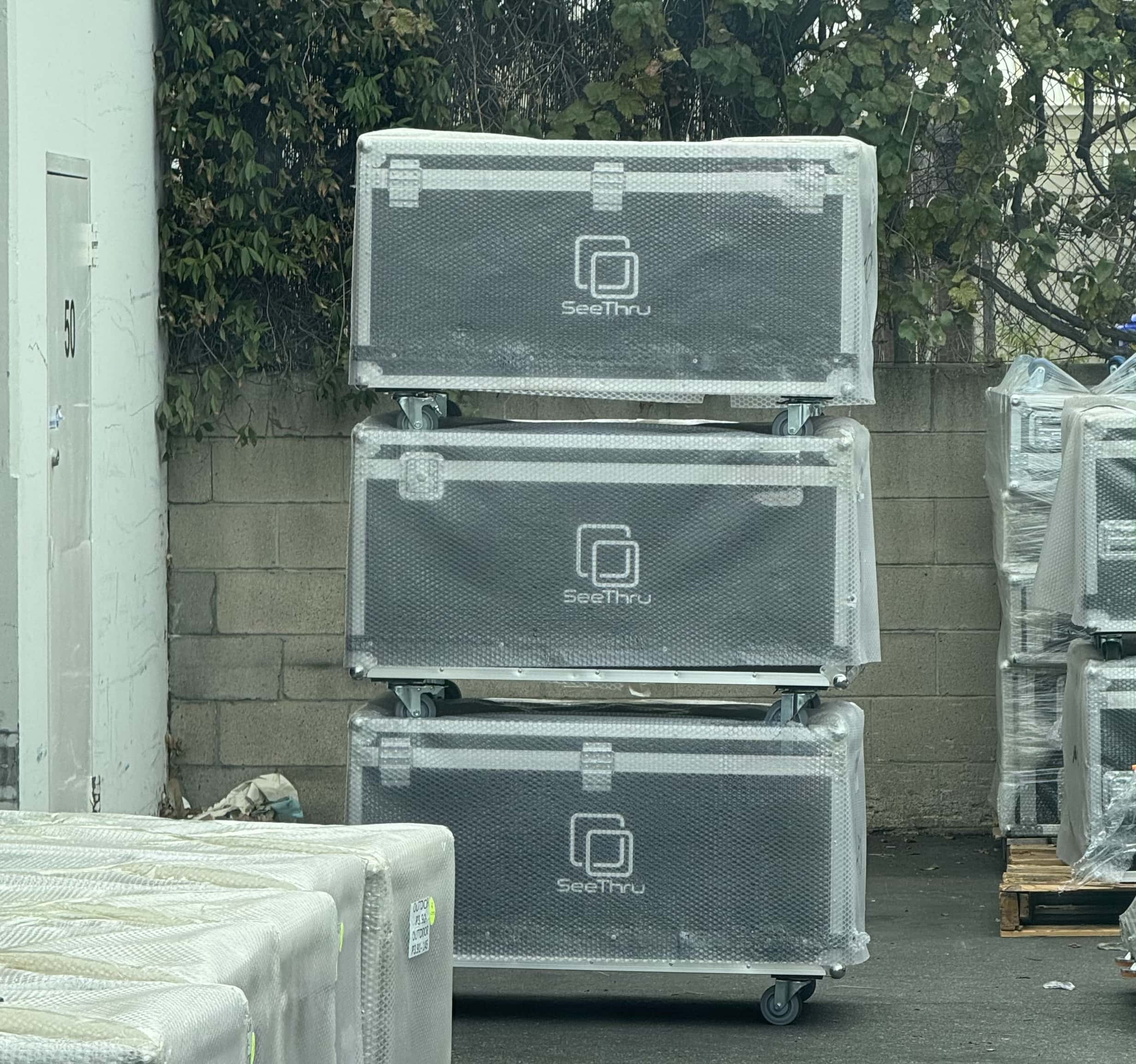

• Professional flight cases for safe storage & transport

• Power supplies, receiving cards, and cables

• Hanging bars for secure mounting

• Spare modules and spare power supply for backup

Ideal Applications

• Outdoor advertising & digital billboards

• Concerts, festivals, and sporting events

• Trade shows, exhibitions, and experiential marketing

• Permanent installations at venues, retail, and hospitality

• Residential Installation for backyard and by the pool
