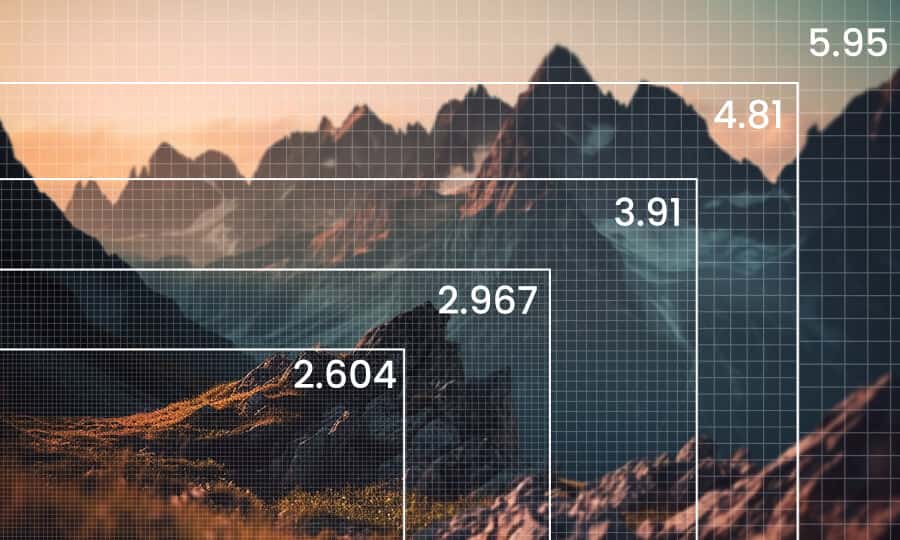

If you strip away the jargon, pixel pitch is just the distance from the center of one pixel to the center of its neighbor. On LED walls it’s measured in millimeters—P2.6, P3.91, P5, etc. Smaller pitch = pixels packed tighter = crisper image up close. Bigger pitch = more spacing = you stand farther back. That’s it.

The rule of thumb that saves budgets

You’ll hear a lot of hand-wavy “our content is high-res so we need P1.5.” Maybe… or maybe you’re about to overspend. A widely used yardstick: ~1 mm of pixel pitch for ~3 feet of viewing distance. So a P3 screen looks great from ~9–10 feet, P5 from ~15 feet, and so on. It’s a rule of thumb, not scripture, but it keeps you out of trouble.

What pixel pitch is not (don’t mix these up)

People mash together pixel pitch, resolution, and PPI like it’s a mystery smoothie. They’re related, not identical:

• Pixel pitch vs resolution: Pitch is spacing; resolution is how many pixels total (e.g., 1920×1080). Same resolution on a bigger canvas means larger pitch; same pitch on a bigger canvas means higher resolution. They talk, but they’re not twins.
• Pixel pitch to PPI: PPI (pixels per inch) comes from pixel count and physical size: PPI=H2+V2diagonal inches\text{PPI} = \frac{\sqrt{H^2+V^2}}{\text{diagonal inches}}PPI=diagonal inchesH2+V2​​. Helpful when you’re comparing a monitor’s pixel pitch vs pixel size questions to a direct-view LED wall.

So if you’re asking, “is pixel pitch the same as resolution?”—no. It influences resolution, it isn’t resolution.

How to pick a pixel pitch without guessing

Think like a venue operator, not a spec sheet collector:

1. Start from the audience, not the cabinet. Where do people actually stand? If your front row is 12 feet away, P3–P4 is sensible. If folks are 30 feet out, P8–P10 won’t embarrass you. (pixel pitch vs viewing distance matters more than any marketing term.)
2. Content type matters. UI text, face close-ups, and fine product shots want smaller pitch; concert backdrops, scoreboard numbers, and atmospheric loops are forgiving. (Vendors agree: pixel density dictates how close you can be before you see the grid.)
3. Environment matters. Outdoor highway signs? You don’t need P2.6 to sell tacos at 55 mph. Indoor retail or boardroom? You might. (This is where fine pixel pitch LED displays—P1.x–P2.x—earn their keep.)
4. Cabinet size & module math. A 2.6 mm pixel pitch LED panel doesn’t live in a vacuum; modules tile into cabinets, cabinets tile into a wall. Resolution scales with physical size at a given pitch. (Yes, LED display pixel pitch directly sets pixel density.)

“What’s the best pixel pitch?”

There isn’t one. There’s a right pitch for each install.
If you want one sentence: choose the largest pitch your nearest viewer won’t notice. Why? It’s cheaper, lighter, and friendlier to processors and content pipelines—without compromising perceived sharpness at the intended viewing distance. Is a higher or lower pixel pitch better? Lower looks better up close; higher is fine at range and saves money. Choose based on distance, not ego.

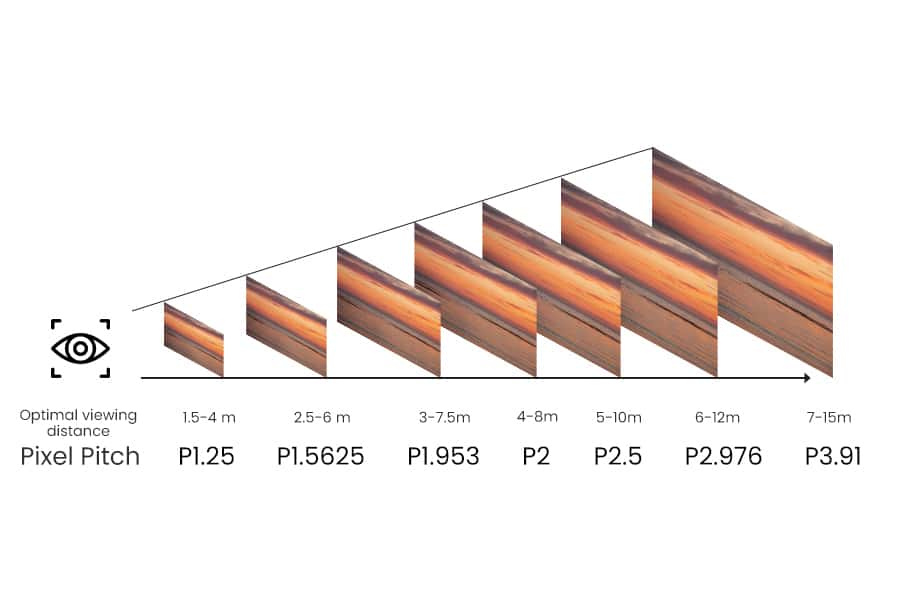

Viewing-distance sanity checks (quick examples)

• Retail feature wall, viewers 6–10 ft: P2–P2.5 keeps imagery clean and text legible.
• Corporate lobby, 10–18 ft: P2.5–P3.9 usually hits the sweet spot.
• Arena ribbon or stage backline, 20–40+ ft: P4.8–P10 is common and cost-sane.

Monitors, signs, radiology—same idea, different units

The meaning of pixel pitch doesn’t change across domains, only the scale:

• Monitors / TVs: Often discussed as monitor pixel pitch or expressed through PPI. Same geometry, just inches instead of millimeters.
• Radiology (DR panels): Pitch is in micrometers (µm) because detectors are tiny; smaller pitch = finer detail for imaging. The principle mirrors LED—tighter pitch, more detail—just a different animal. (pixel pitch radiology)

“Pixel pitch vs pixel size” in human words

Pixel size is literally how big the pixel element is. Pitch is center-to-center spacing, which includes any dead area between pixels. That spacing is what your eye resolves at distance, so pitch is the spec manufacturers publish (P2.6, P3.91, etc.).

Calculators: useful, not oracles

A pixel pitch calculator or LED pixel pitch viewing distance chart is handy for ballparks. It won’t know your ambient light, viewing angles, or whether you’re playing 6-point legal copy. Use the 1 mm ≈ 3 ft rule, then sanity-check on site (or at least in a showroom) before you lock the PO.

If you need the mathier side—converting to PPI or comparing pixel pitch to PPI—use a standard PPI calculator and your total pixel count and diagonal size. Don’t overfit it; for LED, the practical limiter is human vision distance, not a spreadsheet flex.

A few stubborn myths, punctured

• “Fine pixel pitch LED” is always better. Not if your crowd is 25 feet away. You’ll pay more for sharpness no one can see.
• “High resolution content demands tiny pitch.” Resolution of the source is only half the story. If viewers are far enough, larger pitch reproduces it indistinguishably.
• “Pixel pitch equals resolution.” Already covered: related, not the same.

Buying checklist you won’t regret using

When you spec an LED wall pixel pitch (indoor or outdoor), run this quick audit:

• Front-row distance (be honest): match to the 1 mm ≈ 3 ft rule, then see a demo at that distance.
• Content reality: text size, facial detail, motion graphics style.
• Physical scale: cabinet/module geometry at your target width × height (resolution at pitch).
• Budget/weight/maintenance: lower pitch raises cost, power, and sometimes service complexity; pick the largest acceptable pitch.

The short answer you can put in a proposal

Define pixel pitch: center-to-center pixel spacing (mm).
What does pixel pitch mean for you? It sets how close viewers can stand before the image looks “dotted.”
How to calculate pixel pitch needs? Start with viewing distance (≈ 1 mm per 3 ft), verify with a demo, and size cabinets to hit your required resolution.
